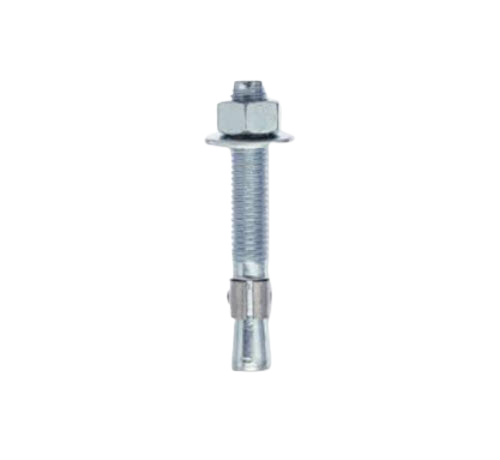

Trubolt® Wedge anchors feature a stainless steel expansion clip, threaded stud body, nut and washer.

Anchor bodies are made of plated carbon steel, hot-dipped galvanized carbon steel, type 304 stainless steel or type 316 stainless steel as identified in the drawings or other notations. The exposed end of the anchor is stamped to identify anchor length. Stampings should be preserved during installation for any subsequent embedment verification.

Features

• 2006 International Building Code (IBC) Compliant.
• Versatile fully threaded design is standard on sizes up to 3/4" diameter and 10" length.
• Anchor diameter equals hole diameter.
• Standard carbon and stainless steel anchors.
• 360° contact with concrete assures full expansion for reliable working loads.
• Non bottom-bearing, may be used in hole depth exceeding anchor length.
• Can be installed through the work fixture, eliminating hole spotting.
• Inspectable torque values, indicating proper installation.
• Thread Length: 5-1/2 in

25 pcs/ctn
