38 3/8 in x 150 ft Structa Wire Structalath III 316
PARTSFW316
Calculating price...
In Stock
QUANTITY
ORDER BY
About this item

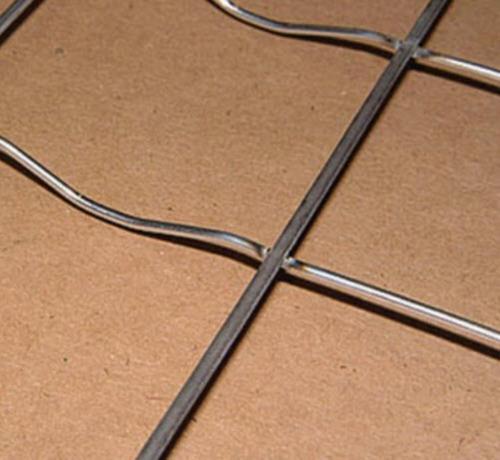

STRUCTALATH 316 SFCR is a welded wire lath engineered to enhance the performance of stucco cladding. Structalath 316 is a modified version of our Structalath III that features a reduced furr depth for use with 1/2" systems – with or without foam. The flat furr design ensures there will be no damage to the vapor barrier and promote uniform thickness in a one-coat system. Structalath 316 is enhanced with six secondary cold rolled longitudinal wires for improved attachment. Structalath 316 is easy to handle and improves construction site efficiency.
Features
17 ga. galvanized steel wire is precision welded to form 1 ½" × 1 ½" openings
Rolls are 38 3/8" wide by 150 ft. long (50 square yards)
Weight of roll is 1.0 lb/yd2
Galvanizing of the wire meets requirements in ASTM A641–03
Design promotes uniform plaster thickness
Provides superior reinforcement and crack resistance
Each and every cross wire is securely furred
Hat channel furr provides for superior stucco embedment
Longitudinal wires are cold rolled (flattened) to eliminate curvature memory
Cold rolled (CR) process increases tensile and breaking load of wire
Rolls out flat and stays flat
Easy to fold around corners with clean bending lines
Structalath can be attached with either nails or staples
Twin wire feature provides for secure easy attachment of the lath
Make & Model
Brand
---
Part #
---
Specifications
Color Family
White
Certifications & Standards
TAA/BAA Compliant
1
Packaging Dimensions
Height
7.800
There are currently no resources for this product.
